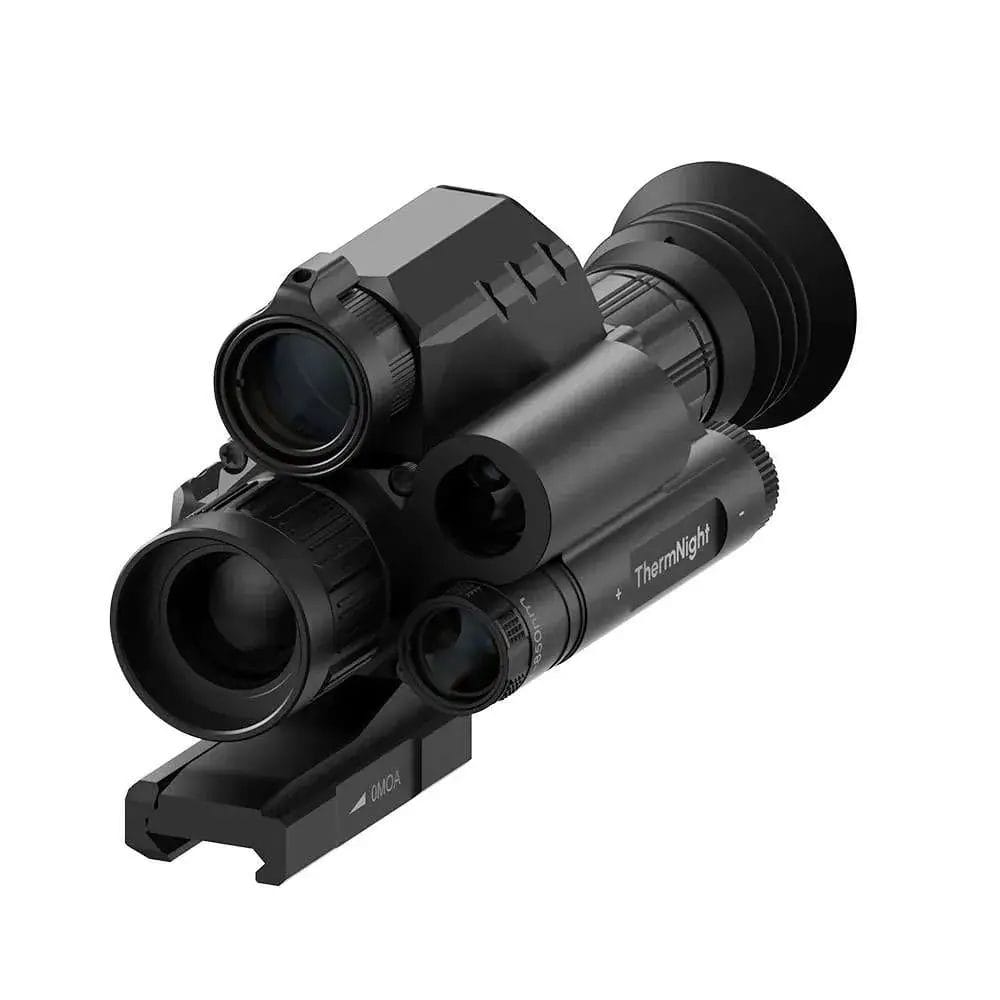

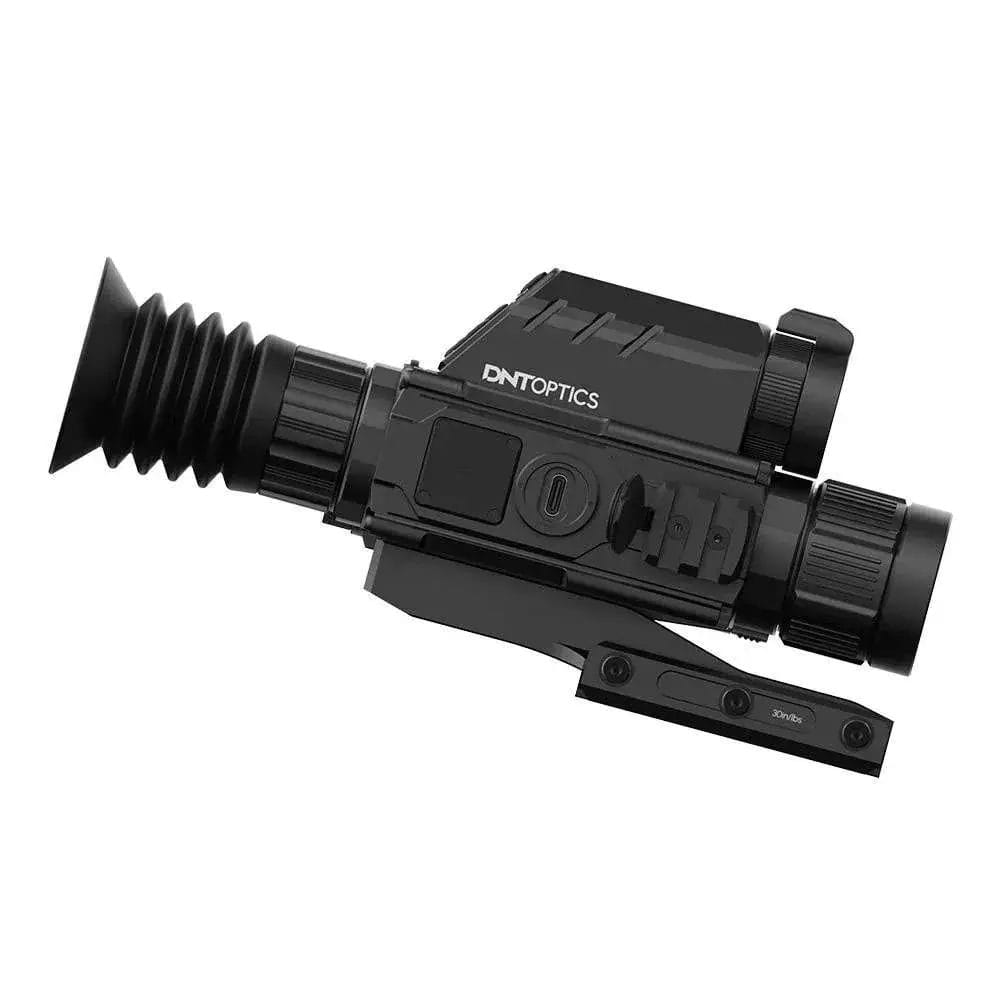

DNT ThermNight TNC335R Multispectral Scope with LRF and Ballistic Calculator

The ThermNight TNC335R Multispectral Scope with LRF and Ballistic Calculator is the culmination of technology to create the perfect aiming solution. It can be used in all weather & lighting conditions. The thermal and night vision combination allows for faster detection of targets and provides high-quality digital image for identification.

The DNT ThermNight TNC335R features a 384 x 288 thermal sensor delivering superior clarity with a wider field of view (FOV) for easier target detection. The TNC335R uses an uncooled VOx microbolometer with a 12um pixel pitch, ≤18mk @ 25°C sensitivity, and a 50Hz refresh rate for optimal performance in the field.

Utilization of SONY’s latest CMOS Starvis2 Technology, as well as ED glass lenses, cutting edge AI imaging algorithms and a world-leading 60Hz 1920×1080 Micro-OLED display ensures the DNT ThermNight to be perfect for day or night.

Switching between thermal and digital channels is as easy as the press of a button, conveniently positioned on the side of the scope. You can also enable Picture-in-Picture so you can see both channels at the same time, saving you time to focus on your target.

Featuring a cutting-edge built-in laser rangefinder, this device provides highly accurate distance measurements from 5 to 1100 yards. Once the range is determined, the onboard ballistic calculator quickly generates a ballistic solution, which is then displayed as either dial-in or holdover corrections, ensuring precision with every shot.

Battery Included with purchase of this unit from Ammo Direct.
The scope mount is included with this unit.

Summary
Combine thermal with optical channel for 24/7 performance
Sony Starvis 2 Digital Day and Night Vision
Integrated 1000M LRF with ballistic calculation
Inbuilt VCSEL IR illuminator (850NM for longest viewing range)
Multi-Spectral channel design
384 x 288, 12 micron, ≤18mk NETD thermal sensor
HD Optical sensor
Supplied as standard with 0MOA picatinny mount

Specifications
Physical Specifications
Net Weight: 25.06oz / 724g
Dimensions: 9.2″ x 3.2″ x 3″ / 232mm x 82mm x 78mm
Storage: Internal 64gb
LRF Measuring Range: 5-1000y
WIFI / App; Yes
Ingress Protection: IP67
Operating temperature: -4-122f
Shock Resistance: 800Gs

Display Specifications
Type: Micro LED
Resolution: 1920×1080
Frame Rate: 60Hz

Battery Power Supply
Battery Type: 21700 Flat Top (NOT INCLUDED)
Operating Time: 5 Hours
External Power Type; 5v Type C USB

Thermal Channel
Resolution: 384×288
Image Sensor: Uncooled Infrared
Frame Rate: 50fps
Pixel Size: 12 microns
NETD: ≤18mk @ 25°C
Objective Focal Length: 35mm
Base Magnification: 2.5x
Digital Zoom: 2.5x, 3.75x, 5x, 6.25x, 7.5x, 8.75x, 10x

Visible Light Channel Sensor
Resolution: 1920 x 1080
Frame Rate: 60fps
Video Record Resolution 1800×1080

Visible Light Channel Optical
Detection Range: 400m
Base Magnification: 5x
Digital Zoom: 5x, 7.5x, 10x, 12x, 15x, 17.5x, 20x
Eye Relief: 65mm
Diopter Adjustment: ±3D
IR Wavelength: 850nm/940nm
Infrared Power: Class 3R Eye Safe

Product code: TNC335R
